    100M Gigabit Layer 2 Unmanaged Industrial Ethernet Switch

    6/10-port 100M/Gigabit Layer 2 Unmanaged Industrial PoE Switch


    Introduction:


    IES2210 series are 6/10-port 100M/Gigabit layer 2 unmanaged industrial Ethernet switches. This series provide 100M copper port (optional PoE) and Gigabit Combo port (SFP slot or RJ45), and the PoE power supply conforms to the protocol standard of IEEE802.3af/at. They also adopt DIN-Rail or wall mounting, which can meet the requirements of different scenes.


    This series support optional AC/DC power supply. And the input power supply is two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. The design of DIP switch can realize flow control, port with the specified speed of 10M and alarm. When the link failure of port occurs, ALM indicator will light up and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, aerospace, intelligent manufacturing, military project and other industrial fields.

    Specification:


    Standard

    &

    Protocol


    IEEE 802.3 for 10Base-T

    IEEE 802.3u for 100Base-TX

    IEEE 802.3ab for 1000Base-T

    IEEE 802.3z for 1000Base-X

    IEEE 802.3x for Flow Control

    IEEE 802.3af for PoE

    IEEE 802.3at for PoE+


    PoE

    The maximum power of single PoE port: 30W

    The power supply pin of PoE: V+, V-, V+, V- correspond to Pin 1, 2, 3, 6


    Interface

    100M copper port: 10/100Base-T(X), RJ45, Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning

    Combo port: 10/100/1000Base-T(X) or 1000Base-X

    Console port: CLI command line management port (RS-232), RJ45

    Alarm port: 6-pin 5.08mm pitch terminal blocks, including 2-pin alarm terminal blocks, support 1 relay alarm output, current carrying capacity is 1A@30VDC or 0.3A@125VAC


    LED Indicator

    Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator, PoE Indicator (only for PoE products)


    Switch

    Property


    Transmission mode: store and forward

    MAC address: 8K

    Packet buffer size: 1Mbit

    Backplane bandwidth: 7.6G

    Switch time delay: <10μs


    Power

    Requirement


    Optional 24VDC, 48VDC or 220VAC, 6 pins 5.08mm pitch terminal blocks, including 4 pins power supply terminal blocks

    DC dual power supply redundancy, anti-reverse connection


    Power

    Consumption


    No-load: ≤4.9W@48VDC

    Full-load: ≤122.8W@48VDC


    Environmental

    Limit


    Operating temperature range: -40~75℃

    Storage temperature range: -40~85℃

    Relative humidity: 5%~95%(no condensation)


    Physical Characteristic

    Housing: IP40 protection, metal

    Installation: DIN-Rail or wall mounting

    Dimension (W x H x D): 53mm×138mm×110mm

    Weight: ≤0.62kg


    Industrial

    Standard


    IEC 61000-4-2 (ESD), Level 3

    Air discharge: ±8kV

    Contact discharge: ±6kV


    IEC 61000-4-4 (EFT), Level 3

    Power supply:±2kV

    Ethernet port: ±1kV

    Relay: ±2kV


    IEC 61000-4-5 (Surge), Level 3

    Power supply: common mode±2kV, differential mode±1kV

    Ethernet port: common mode±2kV, differential mode±1kV

    Relay: common mode±2kV, differential mode±1kV


    Shock: IEC 60068-2-27

    Free fall: IEC 60068-2-32

    Vibration: IEC 60068-2-6


    Certification

    CE, FCC, RoHS


    Warranty

    5 years



    Order Information:


    Available ModelsGigabit Combo Port100M Copper Port100M PoE PortPoE PowerPower Supply
    IES2210-8T2GC-2P4828--

    12~48VDC

    dual power supply

    IES2210-8T2GC-P22028--

    85~264VAC

    single power supply

    IES2210-4T2GC-2P4824--

    12~48VDC

    dual power supply

    IES2210-4T2GC-P22024--

    85~264VAC

    single power supply

    IES2210-8P2GC-2P24-120W2-8120W

    24VDC

    dual power supply

    IES2210-8P2GC-2P48-120W2-8120W

    48VDC

    dual power supply

    IES2210-8P2GC-2P48-240W2-8240W

    48VDC

    dual power supply

    IES2210-4P2GC-2P24-60W2-460W

    24VDC

    dual power supply

    IES2210-4P2GC-2P24-120W2-4120W

    24VDC

    dual power supply

    IES2210-4P2GC-2P48-120W2-4120W

    48VDC

    dual power supply

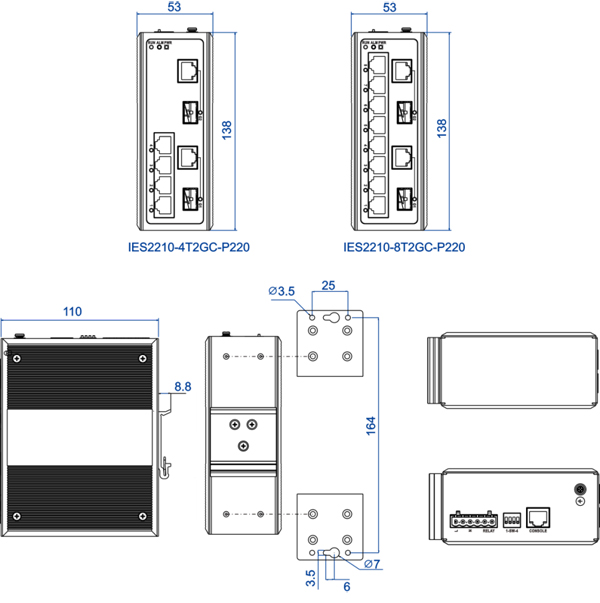

    Dimension:


    Unit:mm


    DC power supply product


    AC power supply product
