1 Port 10/100M Protocol Converter Desktop Mounting With 3 Years Warranty

    Buy cheap 1 Port 10/100M Protocol Converter Desktop Mounting With 3 Years Warranty from wholesalers

    Buy cheap 1 Port 10/100M Protocol Converter Desktop Mounting With 3 Years Warranty from wholesalers
    • Buy cheap 1 Port 10/100M Protocol Converter Desktop Mounting With 3 Years Warranty from wholesalers

    1 Port 10/100M Protocol Converter Desktop Mounting With 3 Years Warranty

    Ask Lasest Price
    Brand Name : 3onedata
    Model Number : MODEL7211A
    Certification : CE, FCC, RoHS
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 3000 sets per month
    Delivery Time : 7 Working Days
    • Product Details
    • Company Profile

    1 Port 10/100M Protocol Converter Desktop Mounting With 3 Years Warranty

    1-port 10/100M Ethernet to E1 Bridge

    Introduction


    MODEL7211A Series are cost effective Ethernet E1 network bridges that can implement Ethernet data transmission through E1 port. This series have 2 types of products and provides 1 100M Ethernet copper port and 1 E1 port, supports 220VAC or -48VDC. It adopts desktop mounting to meet the requirements of different scenes.


    The DIP switch provides device impedance option, Ethernet port configuration, clock option, loopback test, etc. Hardware adopts fanless, low power consumption, wide temperature range design, and can be widely used to meet network requirements like extending and aggregating Ethernet in WAN or LAN and achieve interconnection and access of Ethernet device, thus solving the extending problem of Ethernet data.


    Specification


    E1 Port

    Interface Protocol Standard: aligns with the recommendation of ITU-TG.703

    Output Jitter Transfer: aligns with the recommendation of ITU-TG.735

    Input Jitter Tolerance: aligns with the recommendation of ITU-TG.823

    Output Jitter: meets the recommendation of ITU-TG.823

    Interface quantity: 1 E1 port

    Line Rate: bidirectional 2.048Mbps synchronized data

    Transmission Distance: 2Km

    Clock Recovery Accuracy: ±50ppm

    Interface Code Pattern: HDB3

    Frame Format: un-framing

    CRC Check: No

    Clock Frequency: 2.048MHz

    Interface Connection: BNC, RJ45

    Interface Impedance: 75Ω imbalance(BNC) and 120Ω balance (RJ45,)

    Interface Protection: 1500V Electromagnetic isolation

    Ethernet Port

    Standard: IEEE802.3 for 10Base-T

    IEEE 802.3u for 100Base-TX

    Interface Rate: 10/100Mbps

    Line Code: Manchester code

    Duplex Mode: full/half duplex

    Interface Connection: RJ45

    Transmission Distance: 100m

    Interface Protection: 1500V Electromagnetic isolation

    Connection Cable: connect to PC through crossover cable;

    connect to HUB/SWITCH through straight through cable

    LED Indicator

    Power indicator, Ethernet port connection/rate/duplex indicator, E1 alarm indicator

    Power

    Requirement

    220VAC or -48VDC

    220VAC, with switching AC power supply socket

    -48VDC, adopts 3-pin 5.08mm pitch terminal block

    Power

    Consumption

    ≤2W

    Environmental

    Limit

    Operating temperature:-25~70℃

    Storage temperature: -40~85℃

    Relative humidity: 5%~95%(no condensation)

    Atmospheric pressure: 86~106KPa

    Physical

    Characteristic

    Shell: Plastic

    Installation: desktop installation

    Dimension (W x H x D): 227.4mm×42.7mm×146.3mm

    Weight: 260g

    Certification

    CE, FCC, RoHS

    Warranty

    3 years

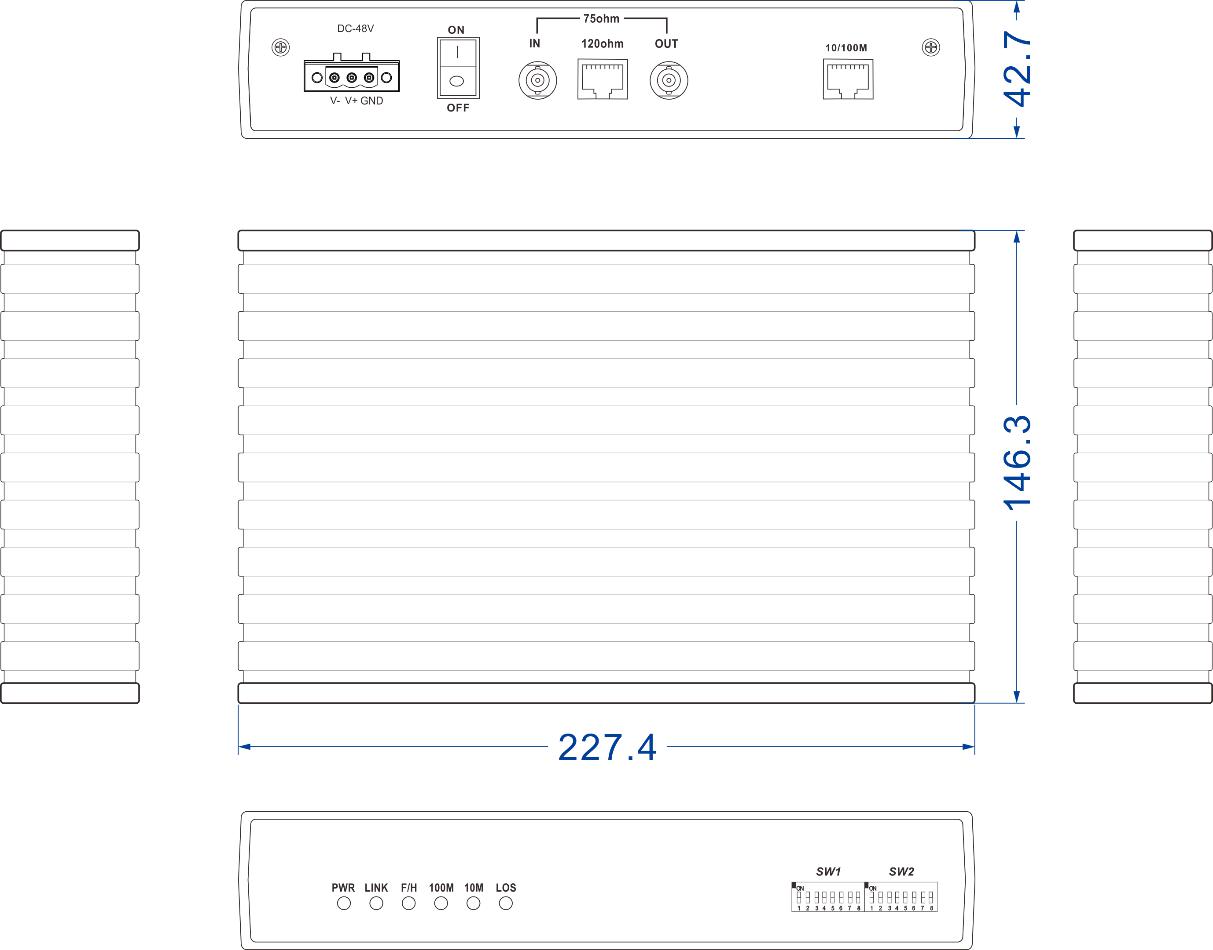

    Dimension
    Unit:mm


    Ordering Information


    Available ModelsE1(BNC or RJ45)10/100M EthernetPower Supply
    MODEL7211A (220VAC)11

    220VAC

    MODEL7211A (-48VDC)11-48VDC
