    Low Power Consumption Industrial Wireless Access Point Aluminum Alloy Material

    Ask Lasest Price
    Brand Name : 3onedata
    Model Number : IAP2312N-2T
    Certification : CE, FCC, RoHS
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 3000 sets per month
    Delivery Time : 7 Working Days
    • Product Details
    • Company Profile

    Low Power Consumption Industrial Wireless Access Point Aluminum Alloy Material

    1-port 100M LAN + 1-port 100M WAN 2.4GHz industrial wireless AP

    Introduction

    IAP2312N-2T is an industrial wireless AP, it supports route, AP, bridge, client four working modes and IEEE802.11b/g/n wireless technology, and wireless transmission speed reaches 300Mbps, which can meet fast data transmission demands. The device supports WEP SHARED, WPA2-PSK and other wireless cipher mode; it possesses SSID concealing, wireless user isolation, MAC address filtering, ARP binding, DMZ setting and other security strategies. Supports virtual AP, that is, an AP device supports multiple SSID; supports seamless roaming, that is, in the WLAN (Wireless Local Area Network) constituted by multiple AP, user can achieve seamless roaming without conducting the switching operation. The product adopts fanless, low power consumption, industrial grade design, all components adopt industrial grade components, which can achieve high reliability and adapt to harsh industrial environment, -40~75℃ working temperature range, it can meet various industrial scenes demands.


    Features and Benefits

    • Support IEEE802.3, IEEE802.3u, IEEE802.11b/g/n, IEEE802.11i, IEEE802.11r standard
    • Support 1-way 10/100Base-T(X) LAN port and 1-way 10/100Base-T(X) WAN port
    • Support two power supply modes, 12~48VDC terminal blocks power supply and POE 48VDC power supply
    • Support 2 x 2 MIMO technology, it provides 1.5KV isolation protection for antenna and power supply
    • Support route, AP, Bridge, client four work modes
    • Support multiple AP seamless roaming technology
    • Support multiple SSID setting and provides SSID concealing function
    • Support port forwarding, ARP binding, DMZ isolation area and other firewall functions
    • Support wireless user management
    • Support wide temperature range operation and storage, working temperature -40~75℃, storage temperature -40~85℃
    • IP40 protection grade, DIN-rail mounting

    Specification

    Standard

    &

    Protocol

    Standard: IEEE802.3, IEEE802.3u, IEEE802.11b/g/n, IEEE802.11i, IEEE802.11r, IEEE802.3af/at

    Protocol: TCP/IP, DHCP, PPPOE, ICMP, ARP, HTTP

    Wireless

    Transmission

    Speed

    802.11n: 6.5~300Mbps

    802.11b: 11/5.5/2/1Mbps

    802.11g: 54/48/36/24/18/12/9/6Mbps

    Radio Frequency

    Channel: 2.412GHz~2.4835GHz

    RF power output: 20dBm

    Receiving sensitivity:

    802.11n_HT40: -82dBm@MCS0, -64dBm@MCS7

    802.11n_HT20: -85dBm@MCS0, -67dBm@MCS7

    802.11g: -91dBm@6Mbps, -72dBm@54Mbps

    802.11b: -93dBm@1Mbps, -87dBm@11Mbps

    Transmitted power:

    802.11n_HT40: 20dBm@MCS0, 20dBm@MCS7

    802.11n_HT20: 20dBm@MCS0, 20dBm@MCS7

    802.11g: 20dBm@6Mbps, 20dBm@54Mbps

    802.11b: 20dBm@1Mbps, 20dBm@11Mbps

    Modulation system: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM

    Interface

    LAN port: 1-way 10/100Base-T(X) RJ45 port

    WAN port: 1-way 10/100Base-T(X) RJ45 port, supports POE48VDC power supply input

    Antenna: 2 RP-SMA (Female) interfaces

    Transfer distance

    Twisted cable: 100M (standard CAT5/CAT5e cable)

    LED Indicator

    Device running status indicator: RUN

    Power supply connection status indicator: PI

    POE power supply status indicator: PoE

    Alarm indicator: ALM

    Wireless port connection indicator:

    Wireless signal intensity indicator:

    LAN port connection status indicator: LAN

    WAN port connection status indicator: WAN

    Power

    Requirement

    Power supply input: 12~48VDC or 48VDC POE power supply

    Input mode: 3-pin 5.08mm pitch terminal block

    Power supply supports non-polarity connection

    Power

    Consumption


    No-load consumption: < 2W

    Full-load consumption: < 3W


    Environmental

    Limit

    Working temperature: -40~75℃

    Storage temperature: -40~85℃

    Relative humidity: 5%~95% (no condensation)

    Physical

    Characteristic

    Shell: IP40 protection grade, corrugated high strength mental shell

    Mounting method: DIN-rail or wall-mounted (optional accessories)

    Size (L×W×H): 138mm×110mm×35mm

    Weight: 0.57kg

    Industrial

    Standard

    EMI: FCC Part 15, CISPR (EN55022) class A

    EMS:

    IEC 61000-4-2 (ESD), Level 3

    Contact: 6 kV

    Air: 8 kV

    IEC 61000-4-4 (EFT), Level 3

    Power: 2 kV

    Signal: 1 kV

    IEC 61000-4-5 (Surge), Level 3

    Power: common mode 2 kV

    different mode 1 kV

    Signal: common mode 2 kV

    different mode 1 kV

    Shock: IEC 60068-2-27

    Free fall: IEC 60068-2-32

    Vibration: IEC 60068-2-6


    Certification

    CE, FCC, RoHS

    Warranty

    5 years

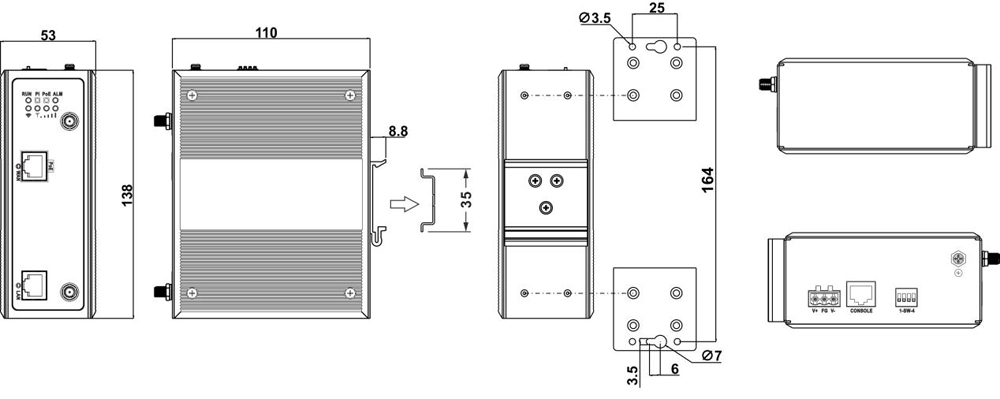

    Dimension

    Unit:mm

    Ordering Information


    Available ModelsWANLANAntennaPower Supply
    IAP2312N-2T11212~48VDC or 48VDC POE
