    20-port Industrial Ethernet Switch With IP40 Protection Metal Housing

    Ask Lasest Price
    Brand Name : 3onedata
    Model Number : IES3020
    Certification : CE, FCC, RoHS
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 3000 sets per month
    Delivery Time : 7 Working Days
    • Product Details
    • Company Profile

    20-port Industrial Ethernet Switch With IP40 Protection Metal Housing

    20-port 100/1000M layer 2 unmanaged DIN-rail mounting industrial Ethernet switch

    Introduction

    IES3020 series are 20-port 100M/Gigabit layer 2 unmanaged industrial Ethernet switches. This series include three types of products and provide 100M copper ports, 100M fiber ports, Gigabit SFP slots. It adopts DIN-Rail mounting to meet the requirements of different application scenes.


    Power supply input is two independent power supply circuits, which can ensure the device normal operation when one of the power supplies breaks down. DIP switch can achieve power supply alarm, flow control and storm suppression. When power supply link failure occurs, ALARM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, aerospace, intelligent manufacturing, military project and other industrial fields.


    Specification

    Standard

    &

    Protocol

    IEEE 802.3 for 10Base-T

    IEEE 802.3u for 100Base-TX and 100Base-FX

    IEEE 802.3z for 1000Base-X

    IEEE 802.3x for Flow Control

    Interface

    Copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning

    Fiber port: 100Base-FX, SC/ST/FC optional

    SFP slot: 1000Base-SFP

    Alarm port: 2-pin 7.62mm pitch terminal blocks, support 1 relay alarm output, current carrying capacity 5A@30VDC or 10A@125VAC

    LED Indicator

    Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator

    Switch

    Property

    Transmission mode: store and forward

    MAC address: 8K

    Packet buffer size: 3Mbit

    Backplane bandwidth: 12.8G

    Switch time delay: < 10μs

    Power

    Requirement

    12~48VDC, 4-pin 7.62mm pitch terminal blocks

    Dual power supply redundancy, nonpolarity, reverse polarity protection

    Support 4A overcurrent protection

    Environmental

    Limit

    Operating temperature range: -40~75℃

    Storage temperature range: -40~85℃

    Relative humidity: 5%~95%(no condensation)

    Physical

    Characteristic

    Housing: IP40 protection, metal

    Installation: DIN-Rail mounting

    Dimension (W x H x D): 70mm×160mm×130mm

    Weight: ≤1.02kg

    Industrial

    Standard

    IEC 61000-4-2 (ESD), Level 4

    Air discharge: ±15kV

    Contact discharge: ±8kV


    IEC 61000-4-4 (EFT), Level 4

    Power supply: ±4kV

    Ethernet interface: ±2kV

    Relay: ±4kV


    IEC 61000-4-5 (Surge), Level 2

    Power supply: common mode ±1kV, differential mode ±500V

    Ethernet interface: ±2kV

    Relay: common mode ±1kV, differential mode ±500V


    Shock: IEC 60068-2-27

    Free fall: IEC 60068-2-32

    Vibration: IEC 60068-2-6

    Certification

    CE, FCC, RoHS

    Warranty

    5 years

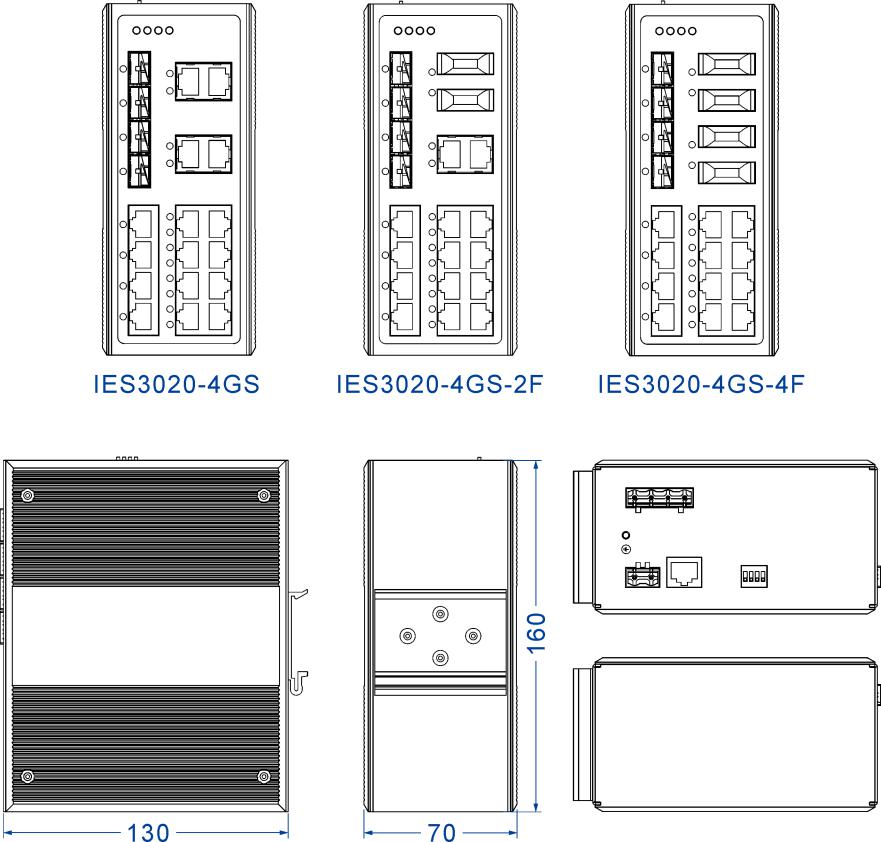

    Dimension
    Unit:mm


    Ordering Information


    Available ModelsGigabit SFP Slot100M Fiber Port100M Copper PortPower Supply Range
    IES3020-4GS4016

    12~48VDC

    dual power supply

    IES3020-4GS-2F4214
    IES3020-4GS-4F4412
