    Full Gigabit Layer 3 Ethernet Switch , Industrial 24 Port Switch With 4 10GbE Ports

    24-port full gigabit layer 3 managed industrial Ethernet switch with 4 10GbE ports

    Introduction

    ICS5028G-4XGS-8GC-16GT is 28-port gigabit/10 gigabit layer 3 managed industrial Ethernet switch. It provides gigabit copper ports, gigabit fiber and copper Combo ports and 10 Gigabit SFP slots. It adopts 1U rack mounting, abundant numbers of interfaces and bandwidth of gigabit/10 gigabit combination to meet the application requirements of large-scale industrial network.


    Network management system supports various network protocols and industrial standards, such as ARP, Static ND, VRRP, RIP, OSPF, BGP, STP/RSTP/MSTP, 802.1Q VLAN, QoS, IGMP Static Multicast, LLDP, Port Trunking, Port Mirroring, etc. It also possesses complete management functions, including Port Configuration, Port Statistics, Access Control, 802.1X Authentication, Network Diagnosis, Rapid Configuration, Online Upgrading and so on, and supports CLI, WEB, Telnet, SNMP and other access methods. It can provide users with good experience with friendly design of network management system interface, simple and convenient operation.


    The input power supply is two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. When power supply or port has link failure, ALARM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, aerospace, intelligent manufacturing, military project and other industrial fields.


    Features and Benefits

    • SNMPv1/v2c/v3 is used for network management of various levels
    • RMON can be used for efficient and flexible network monitoring
    • Port mirroring can conduct data analysis and monitoring, which is convenient for online debugging
    • QoS supports real-time traffic classification and priority setting
    • LLDP can achieve automatic topology discovery, which is convenient for visual management
    • DHCP server and DHCP client could be used for allocating IP address of different strategies
    • File management is convenient for rapid configuration and online upgrade of the device
    • Log management records boot information, operation information and connection information
    • Bandwidth management and flow control can reasonably distribute network bandwidth, preventing unpredictable network status
    • Port statistics can be used for the port real time traffic statistics
    • ARP and Static ND could be used for Mac address resolution
    • User password can conduct user hierarchical management to improve the device management security
    • Radius Server Authentication, anti-attack control, ACL and 802.1X Authentication could strength the flexibility and security of network
    • Relay alarm is convenient for troubleshooting of construction site
    • Storm suppression can restrain the broadcast, unknown multicast and unknown unicast
    • SSHD configuration could encrypt transmitted data, prevent DNS and IP spoofing
    • TELNET configuration and HTTPS configuration could ensure the access security of data
    • VLAN is used for simplifying network planning
    • Port Trunking and LACP can increase network bandwidth and enhance the reliability of network connection to achieve optimum bandwidth utilization
    • IGMP Snooping, GMRP and static multicast can be used for filtering multicast traffic to save the network bandwidth
    • Bandwidth management and flow control can reasonably distribute network bandwidth, preventing unpredictable network status
    • Port isolation could achieve port isolation in the same VLAN and save Vlan resources
    • SW-Ring and STP/RSTP/MSTP can achieve network redundancy, preventing network storm
    • Ping, Traceroute, Port Loopback could achieve network diagnosis and troubleshooting
    • VRRP, RIP, OSPF, BGP could achieve dynamic routing configuration


    Specification

    Standard

    &

    Protocol

    IEEE 802.3 for 10Base-T

    IEEE 802.3u for 100Base-TX

    IEEE 802.3ab for 1000Base-T

    IEEE 802.3z for 1000Base-X

    IEEE 802.3ae for 10GbE SFP+

    IEEE 802.3x for Flow Control

    IEEE 802.1D for Spanning Tree Protocol

    IEEE 802.1w for Rapid Spanning Tree Protocol

    IEEE 802.1s for Multiple Spanning Tree Protocol

    IEEE 802.1Q for VLAN

    IEEE 802.1p for CoS

    IEEE 802.1X for 802.1X Authentication

    IEEE 802.1AB for LLDP

    IEEE 802.3ad for LACP

    Management

    SNMP v1/v2c/v3 Centralized Management of Equipment, RMON, Port Mirroring, QoS, LLDP, DHCP Server, DHCP Client, File Management, Log Management, Port Statistics, ARP and Static ND

    Security

    Classification of User Permissions, Radius Server Authentication, Anti-attack Control, ACL, 802.1X Authentication, Port Alarm, Power Supply Alarm, Storm Suppression, SSHD Configuration, Telnet Configuration, HTTPS Configuration

    Switch Function

    802.1Q Vlan, Static/Dynamic Port Aggregation, Bandwidth Management, Flow Control, Port Isolation

    Unicast / Multicast

    Static Multicast, GMRP, IGMP-Snooping

    Redundancy Protocol

    SW-Ring, STP/RSTP/MSTP

    Troubleshooting

    Ping, Traceroute, Port Loopback

    Routing Technique

    VRRP, RIP, OSPF, BGP

    Time Management

    SNTP

    Interface

    Copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning

    SFP slot: 10GbE SFP+

    Combo port: 10/100/1000Base-T(X) or 1000Base-SFP

    Console port: CLI command line management port (RS-232), RJ45

    Alarm port: 2-pin 5.08mm pitch terminal blocks, support 2 relay alarm outputs, current carrying capacity 5A@30VDC or 10A@125VAC

    LED Indicator

    Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator

    Switch Property

    Transmission mode: store and forward

    MAC address: 16K

    Packet buffer size: 12Mbit

    Backplane bandwidth: 128G

    Switch time delay: < 10μs

    Power Requirement

    100~240VAC/DC

    Support 2 AC power supply inputs

    support 8A overcurrent protection

    Terminal block of AC power supply input: single-phase socket with rocker switch

    Power Consumption

    No-load: 20W@220VAC

    Full-load: 28W@220VAC

    Environmental Limit

    Operating temperature range: -40~75℃

    Storage temperature range: -40~85℃

    Relative humidity: 5%~95%(no condensation)

    Physical

    Characteristic

    Housing: IP30 protection, metal

    Installation: 19-inch 1U rack mounting

    Weight: 3900g

    Dimension (W x H x D): 440mm×43mm×285mm

    Industrial Standard

    IEC 61000-4-2 (ESD), Level 4

    IEC 61000-4-4 (EFT), Level 4

    IEC 61000-4-5 (Surge), Level 4

    Shock: IEC 60068-2-27

    Free fall: IEC 60068-2-32

    Vibration: IEC 60068-2-6

    Certification

    CE, FCC, RoHS

    Warranty

    5 years

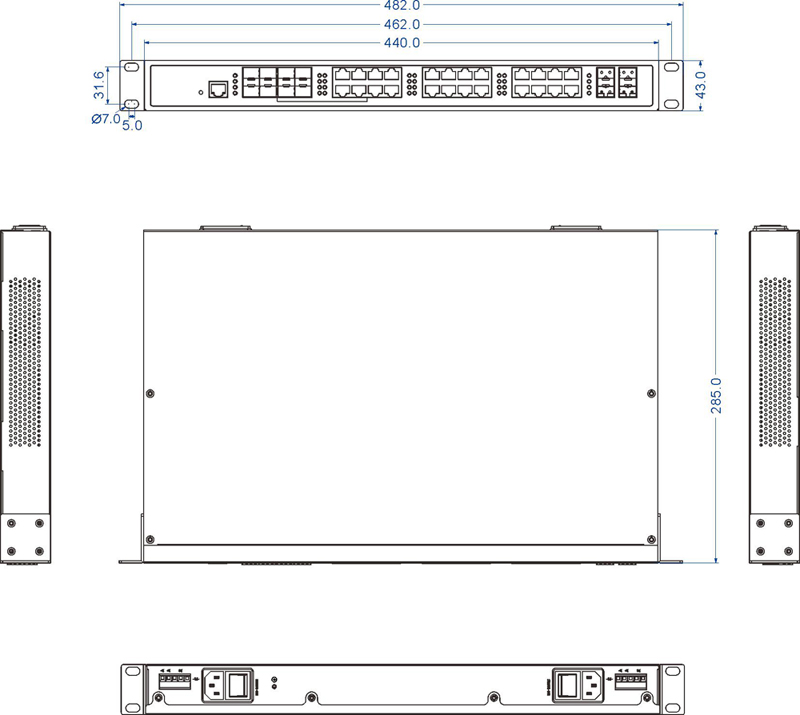

    Dimension
    Unit:mm


    Ordering Information


    Available Models10 Gigabit SFP SlotGigabit ComboGigabit Copper PortPower Supply Range

    ICS5028G-4XGS-8GC-16GT

    4816

    100~240VAC/DC

    dual power supply
