    Outdoor Industrial Wireless Access Point 5 Years Warranty With Dual Band

    Ask Lasest Price
    Brand Name : 3onedata
    Model Number : IAP2600
    Certification : CE, FCC, RoHS
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 3000 sets per month
    Delivery Time : 7 Working Days
    • Product Details
    • Company Profile

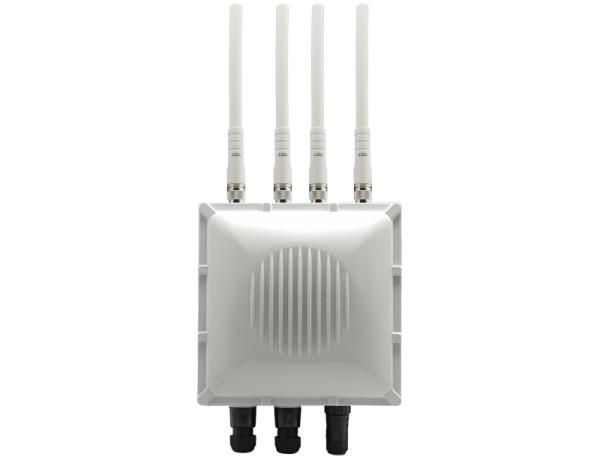

    Outdoor Industrial Wireless Access Point 5 Years Warranty With Dual Band

    1-port gigabit WAN + 1-port gigabit LAN industrial outdoor dual-band wireless AP

    Introduction

    IAP2600 series are gigabit industrial outdoor dual-band wireless AP. This series provide 1 gigabit PoE WAN, 2 2.4G antenna interfaces, 2 5.8G antenna interfaces and 1 12~48VDC power supply (optional). They also adopt wall mounting or pole mounting, which can meet the requirements of different application scenes.
    The network management system supports four operating modes including Route, AP, Bridge and Client, and IEEE802.11b/g/n/a/ac wireless technology. The highest rate of complete machine could reach 1167Mbps and meet the needs of quick data transmission. The device supports wireless encryption methods like WEP SHARED, WPA2-PSK etc. It also possesses SSID concealing, wireless user isolation, MAC address filtering, ARP binding, DMZ setting and other security strategies. Supports virtual AP, that is, an AP device supports multiple SSID; supports fast roaming, that is, in the WLAN (Wireless Local Area Network) constituted by multiple AP, user can achieve fast roaming without conducting the switching operation.
    Hardware adopts fanless, low power consumption, and industrial grade design. IP67 protection and industrial grade components ensure the high reliability of the product which can suit for the harsh outdoor environment. Its -40~75℃ wide operating temperature can meet all demands of industrial scene.

    Features and Benefits

    • Support four operating modes: Route, AP, Bridge and Client
    • Support high-speed wireless connection, 2.4GHz transmission speed could reach 300Mbps, 5.8GHz could reach 867Mbps
    • Support dual-band 2×2MIMO and 4 dual-RF omnidirectional antennas
    • Support simultaneous connection of 100 clients
    • Support multiple AP fast roaming technology, switching time is less than 50ms
    • Support wireless probe, which can achieve personal locating function matching with location engine
    • Support switching function of SSID broadcast
    • Support multiple SSID setting and provides SSID concealing function
    • Support port forwarding, ARP binding, DMZ isolation area and other firewall functions
    • Support WEP/WPA/WPA2 authentication function
    • Support hardware watchdog, which ensures the reliability of the system
    • Support wireless user management and flow monitoring
    • Support -40~75℃ wide operating temperature range
    • Industrial grade 4 design, support power supply and port isolation protection
    • Great anti-jamming and defense capability, suit for any harsh environments

    Specification

    Standard & Protocol

    IEEE 802.3 for 10Base-T

    IEEE 802.3u for 100Base-TX

    IEEE 802.3ab for 1000Base-T

    IEEE802.11b/g/n/a/ac for WLAN

    IEEE802.11i for wireless security

    IEEE802.11r for fast roaming

    IEEE802.3af/at for PoE

    Operating Mode

    Route, AP, bridge, client

    Network Settings

    Intranet setting, outer network setting, wireless setting, roaming setting, wireless probe

    Firewall

    (route mode)

    IP filtering, MAC filtering, URL filtering, port forwarding, ARP binding, DMZ setting

    Radio Frequency

    802.11b/g/n: 2.412GHz~2.4835GHz

    802.11ac/n/a: 5.18GHz~5.825GHz

    RF power output: 20dBm

    Modulation methods: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM

    Receiving Sensitivity

    802.11n_HT40: -82dBm@MCS0, -64dBm@MCS7

    802.11n_HT20: -85dBm@MCS0, -67dBm@MCS7

    802.11g/a: -91dBm@6Mbps, -72dBm@54Mbps

    802.11b: -93dBm@1Mbps, -87dBm@11Mbps

    802.11ac:-84dBm@MCS0, -59dBm@MCS9


    Transmitting Power

    802.11n_HT40: 20dBm@MCS0, 20dBm@MCS7

    802.11n_HT20: 20dBm@MCS0, 20dBm@MCS7

    802.11g/a: 20dBm@6Mbps, 20dBm@54Mbps

    802.11b: 20dBm@1Mbps, 20dBm@11Mbps

    802.11ac: 20dBm@MCS0, 20dBm@MCS9


    Interface

    WAN port: 1 10/100/1000Base-T(X) RJ45port, supports POE 48VDC input power supply

    LAN port: 1 10/100/1000Base-T(X) RJ45 port, supports PoE 48VDC power supply input

    Antenna: 2 2.4G N-type (Female) ports

    2 5.8G N-type (Female) ports


    LED Indicator

    5.8G signal indicator, 2.4G signal indicator, network bridge indicator, running indicator, power supply indicator

    Power Requirement

    POE 48VDC: support IEEE802.3af/at standard

    12~48VDC (optional): support non-polarity, anti-reverse connection and 2A overcurrent protection

    Power Consumption


    No-load: <4.51W@12VDC

    Full-load: <7.90W@12VDC


    Environmental Limit

    Operating temperature: -40~75℃

    Storage temperature: -40~85℃

    Relative humidity: 5%~95%(no condensation)

    Physical

    Characteristic

    Housing: IP67 protection, metal

    Installation: Wall mounting or pole mounting

    Weight: 3.19KG

    Dimension (L × W × H): 220mm×220mm×106.32mm

    Industrial Standard

    IEC61000-4-2 (ESD, electronic static discharge), Level 4

    Air discharge: ±15kV

    Contact discharge: ±8kV


    IEC61000-4-4 (EFT, electrical fast transient ), Level 4

    Power supply: ±4kV

    Signal: ±2kV


    IEC61000-4-5 (Surge), Level 4

    Power supply: common mode±4kV, differential mode±2kV

    Ethernet interface: ±4kV


    Shock: IEC 60068-2-27

    Free fall: IEC 60068-2-32

    Vibration: IEC 60068-2-6


    Certification

    CE, FCC, RoHS

    Warranty

    5 years


    Dimension

    Unit:mm



    Ordering Information


    Available ModelsGigabit PoE WANGigabit PoE LAN2.4G Antenna5.8G AntennaPower Supply
    IAP2600-4A25-PDP12_481122

    PoE 48VDC

    or 12~48VDC

    IAP2600-4A25-PD1122PoE 48VDC

    Optional Accessories


    Available Models5.8G AntennaPower Supply
    2.4GHz(5dBi) omnidirectional fiberglass antenna, N-J type×13005040017Optional
    5.8GHz(5dBi) omnidirectional fiberglass antenna, N-J type×13005040019Optional
    2.4GHz(8dBi) omnidirectional fiberglass antenna, N-J type×13005040012Optional
    5.8GHz(8dBi) omnidirectional fiberglass antenna, N-J type×13005040013Optional
    2.4GHz(14dBi) directional panel antenna, N-K type×13005040010Optional
    5.8GHz(14dBi) directional panel antenna, N-K type×13005040011Optional
    5M outdoor waterproof WLAN RF cable, NJ-NK3005040008Optional
    5M outdoor waterproof WLAN RF cable, NJ-NJ3005040014Optional
