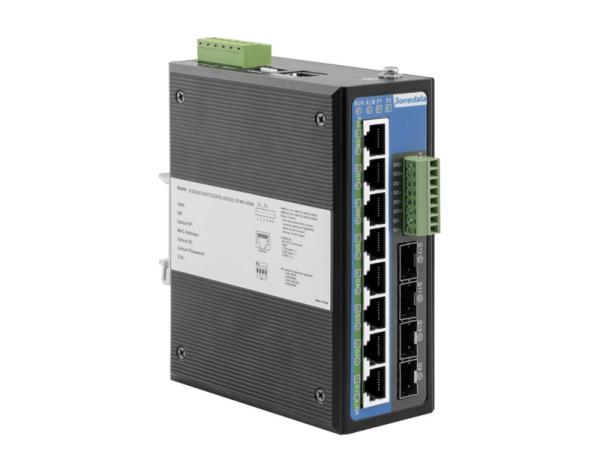

    4Mbit Managed IES6300 Industrial Ethernet Switch

    12/8/6-port Full Gigabit Managed Industrial Ethernet Switch(Optional PoE)


    Introduction:


    IES6300 Series are 12/8/6-port full Gigabit layer 2 managed industrial Ethernet switches with optional PoE. PoE power supply conforms to IEEE 802.3af/at protocol standard. This series provide 34 products and support a variety of interfaces including Gigabit copper ports, Gigabit PoE copper ports, Gigabit SFP slots, 2.5G SFP slots and I/O ports. They adopt DIN-Rail mounting or wall mounting to meet the requirements of different application scenes.
    Network management system supports various network protocols and industrial standards, such as Ring, STP/RSTP/MSTP, ERPS, DHCP, VLAN, QoS function, IGMP Snooping, LLDP, GVRP, Port Trunking, Port Mirroring, etc. It also possesses complete management functions, including Port Configuration, Access Control, AAA Service, Network Diagnosis, Online Upgrading and so on, and supports CLI, WEB, Telnet, SSH, SNMP and other access methods. It can provide users with good experience with friendly design of network management system interface, simple and convenient operation.
    This product supports four optional power supplies. The dual power supply product has two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. The design of DIP switch could implement device factory setting recovery. When DC power supply or port has link failure, ALM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. The hardware adopts fanless, low power consumption and wide temperature and voltage design, which has passed rigorous industrial standard tests, and suits for the industrial scene environment with harsh requirements for EMC. It can be widely used in AP coverage, railway transportation, smart city, safe city, new energy, smart grid, aerospace, intelligent manufacturing, military project and other industrial fields.

    Specification:


    Standard

    &

    Protocol


    IEEE 802.3 for 10Base-T

    IEEE 802.3u for 100Base-TX

    IEEE 802.3ab for 1000Base-T

    IEEE 802.3z for 1000Base-X

    IEEE 802.3x for Flow Control

    IEEE 802.1D for Spanning Tree Protocol

    IEEE 802.1w for Rapid Spanning Tree Protocol

    IEEE 802.1s for Multiple Spanning Tree Protocol

    ITU-T G.8032 for ERPS

    IEEE 802.1Q for VLAN

    IEEE 802.1p for CoS

    IEEE 802.1AB for LLDP

    IEEE 802.3ad for LACP

    IEEE 802.3af for PoE

    IEEE 802.3at for PoE+


    Management

    SNMP v1/v2c/v3 Centralized Management of Equipment, RMON, Port Mirroring, QoS, LLDP, DHCP Server, DHCP Snooping, DHCP Relay, User Password, Login Method, Link OAM, Loop Protection, File Management, Log Management, Ethernet Services, Port Statistics


    Security

    User Privilege Classification, Authentication Method Configuration, SSH Configuration, HTTPS Configuration, Access Control, SNMP, RMON, NAS, ARP, IP Source Guard, ARP Inspection, AAA, Radius Server Authentication, TACACS + Server Authentication, ACL, Port Alarm, DC Power Supply Alarm


    Switch Function

    802.1Q Vlan, Private VLAN, Voice VLAN, VCL, Port Static/Dynamic Aggregation, LACP, sFlow, UPnP



    Unicast / Multicast


    GVRP, IGMP-Snooping, IPMC, MVR, MLD Snooping

    Redundancy

    Protocol



    SW-Ring, STP/RSTP/MSTP, ERPS


    Troubleshooting

    Ping, VeriPHY, DDM


    Time Management

    NTP, Time Zone Configuration, PTP Clock


    PoE(optional)

    The maximum power of PoE port: 30W

    The power supply pin of PoE: V+, V-, V+, V- correspond to Pin 1, 2, 3, 6


    Interface

    Gigabit Copper Port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning, optional PoE

    Gigabit SFP Slots (optional): 100/1000Base-X self-adaption or specified mode, SFP slot

    2.5 SFP slot: 100/1000 self-adaption or 100/1000/2.5GBase-X specified mode, SFP slot

    I/O port (optional): support 2 inputs and 2 outputs, 8-pin 3.81mm pitch terminal blocks, support dry contact input relay output

    Console port: CLI command line management port(RS-232), RJ45

    Alarm port: 6-pin 5.08mm pitch terminal blocks (2-pin relay), support 1 relay alarm output, current carrying capacity is 1A@30VDC or 0.3A@125VAC


    LED Indicator

    Running indicator, alarm indicator, power supply indicator, interface indicator, PoE indicator (optional), I/O output indicator, I/O input indicator


    Switch

    Property


    Transmission mode: store and forward

    MAC address: 8K

    Packet buffer size: 4Mbit

    Backplane bandwidth: 30G

    Switch time delay: <10μs


    Power

    Requirement


    This series product provides 4 power supply methods.


    PoE product has two optional power supply schemes:


    Scheme 1

    Power supply range: 24VDC PoE

    Connection method: 6-pin 5.08mm pitch terminal blocks (includes 4-pin power supply)

    Power supply quantity: dual power supply redundancy backup

    Connection protection: anti-reverse connection

    Overcurrent protection: 12A


    Scheme 2

    Power input: 48VDC PoE

    Connection method: 6-pin 5.08mm pitch terminal blocks (includes 4-pin power supply)

    Power supply quantity: dual power supply redundancy backup

    Connection protection: anti-reverse connection

    Overcurrent protection: 5A


    Non-PoE product has two optional power supply schemes:


    Scheme 3

    Voltage range: 12~48VDC.

    Connection method: 6-pin 5.08mm pitch terminal blocks (includes 4-pin power supply)

    Power supply quantity: dual power supply redundancy backup

    Connection protection: non-polarity

    Overcurrent protection: 3A


    Scheme 4

    Power supply input: 220VAC (100~240VAC).

    Connection method: 6-pin 5.08mm pitch terminal blocks (includes 2-pin power supply)

    Overcurrent protection: 5A


    Power

    Consumption


    No-load: 5.76W@48VDC

    Full-load: 240W@48VDC


    Environmental

    Limit


    Operating temperature: -40~75℃

    Storage temperature:-40~85℃

    Relative humidity: 5%~95%(no condensation)


    Physical Characteristic

    Housing: IP40 protection, metal

    Installation: DIN-Rail or wall mounting

    Weight: 692g

    Dimension (W x H x D): 53mm×138mm×110mm


    Industrial

    Standard


    IEC 61000-4-2 (ESD, electrostatic discharge), Level 3

    IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3

    IEC 61000-4-5 (Surge), Level 3

    Shock: IEC 60068-2-27

    Free fall: IEC 60068-2-32

    Vibration: IEC 60068-2-6


    Certification

    CE, FCC, RoHS


    Warranty

    5 years

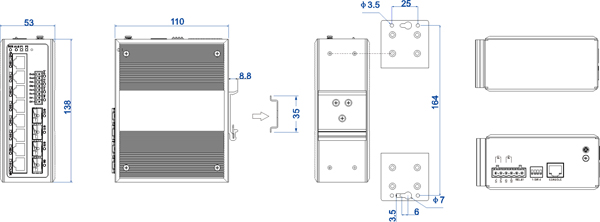

    Dimension:


    Unit:mm


    Order Information:


    Available ModelsGigabit Copper Port

    Gigabit

    PoE Copper port

    Gigabit

    SFP Slot

    2.5G

    SFP Slot

    I/O

    Input output

    PoE

    Power

    Power Supply
    IES6300-4GP2GS2HS-2DI2DO-2P48-120W4222120W

    dual power supply

    48VDC

    IES6300-4GP2GS2HS-2DI2DO-2P48-60W422260W

    dual power supply

    48VDC

    IES6300-4GP2GS2HS-2DI2DO-2P24-120W4222120W

    dual power supply

    24VDC

    IES6300-4GP2GS2HS-2DI2DO-2P24-60W422260W

    dual power supply

    24VDC

    IES6300-4GP2GS2HS-2P48-120W422120W

    dual power supply

    48VDC

    IES6300-4GP2GS2HS-2P48-60W42260W

    dual power supply

    48VDC

    IES6300-4GP2GS2HS-2P24-120W422120W

    dual power supply

    24VDC

    IES6300-4GP2GS2HS-2P24-60W42260W

    dual power supply

    24VDC

    IES6300-4GP2HS-2DI2DO-2P48-120W422120W

    dual power supply

    48VDC

    IES6300-4GP2HS-2DI2DO-2P48-60W42260W

    dual power supply

    48VDC

    IES6300-4GP2HS-2DI2DO-2P24-120W422120W

    dual power supply

    24VDC

    IES6300-4GP2HS-2DI2DO-2P24-60W42260W

    dual power supply

    24VDC

    IES6300-4GP2HS-2P48-120W42120W

    dual power supply

    48VDC

    IES6300-4GP2HS-2P48-60W4260W

    dual power supply

    48VDC

    IES6300-4GP2HS-2P24-120W42120W

    dual power supply

    24VDC

    IES6300-4GP2HS-2P24-60W4260W

    dual power supply

    24VDC

    IES6300-4GT2GS2HS-2DI2DO-P2204222Single power supply 100~240VAC
    IES6300-4GT2GS2HS-2DI2DO-2P484222Dual power supply ranging 12~48VDC
    IES6300-4GT2GS2HS-P220422Single power supply 100~240VAC
    IES6300-4GT2GS2HS-2P48422Dual power supply ranging 12~48VDC
    IES6300-4GT2HS-2DI2DO-P220422Single power supply 100~240VAC
    IES6300-4GT2HS-2DI2DO-2P48422Dual power supply ranging 12~48VDC
    IES6300-8GP2GS2HS-2DI2DO-2P48-240W8222240W

    dual power supply

    48VDC

    IES6300-8GP2GS2HS-2DI2DO-2P48-120W8222120W

    dual power supply

    48VDC

    IES6300-8GP2GS2HS-2DI2DO-2P24-120W8222120W

    dual power supply

    24VDC

    IES6300-4GT2HS-P22042Single power supply 100~240VAC
    IES6300-4GT2HS-2P4842Dual power supply ranging 12~48VDC
    IES6300-8GP2GS2HS-2P48-240W822240W

    dual power supply

    48VDC

    IES6300-8GP2GS2HS-2P48-120W822120W

    dual power supply

    48VDC

    IES6300-8GP2GS2HS-2P24-120W822120W

    dual power supply

    24VDC

    IES6300-8GT2GS2HS-2DI2DO-P2208222Single power supply 100~240VAC
    IES6300-8GT2GS2HS-2DI2DO-2P488222Dual power supply ranging 12~48VDC
    IES6300-8GT2GS2HS-P220822Single power supply 100~240VAC
    IES6300-8GT2GS2HS-2P48822Dual power supply 12~48VDC
