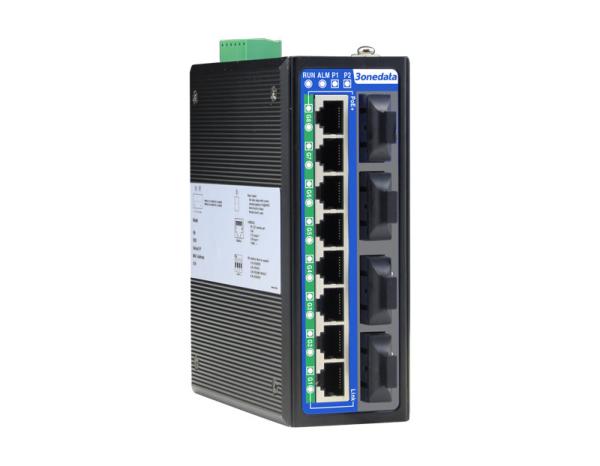

DIP 12 Port Managed IES6312 Industrial PoE Switch

    Buy cheap DIP 12 Port Managed IES6312 Industrial PoE Switch from wholesalers

    Buy cheap DIP 12 Port Managed IES6312 Industrial PoE Switch from wholesalers
    • Buy cheap DIP 12 Port Managed IES6312 Industrial PoE Switch from wholesalers

    DIP 12 Port Managed IES6312 Industrial PoE Switch

    Ask Lasest Price
    Brand Name : 3onedata
    Model Number : IES6312 Series
    Certification : CE FCC RoHS
    Price : Negotiable
    Supply Ability : 3000pcs per month
    Delivery Time : 7 Working Days
    • Product Details
    • Company Profile

    DIP 12 Port Managed IES6312 Industrial PoE Switch

    12-port Full Gigabit Managed Industrial PoE/Non-PoE Ethernet Switch


    Introduction:


    IES6312 series are 12-port full gigabit layer 2 managed industrial PoE/non-PoE Ethernet switches. Their PoE power supply conforms to the protocol standards of IEEE 802.3af/at. This series have 8 types of product, and provide gigabit copper ports, gigabit PoE ports, gigabit fiber pots, gigabit SFP slots and other ports. They support multiple power supply schemes including 100~240VAC, 12~48VDC, 24VDC POE and 48VDC POE, and adopt DIN-Rail mounting or wall mounting, which can meet the requirements of different scenes.
    Network management system supports various network protocols and industrial standards, such as STP/RSTP, 802.1Q VLAN, QoS, IGMP Static Multicast, LLDP, Port Trunking, Port Mirroring, etc. It also possesses complete management functions, including Port Configuration, Port Statistics, Access Control, 802.1X Authentication, Network Diagnosis, Rapid Configuration, Online Upgrading and so on. Moreover, it supports CLI, WEB, Telnet, SNMP and other access modes. It can provide users with good experience via friendly design of network management system interface, simple and convenient operation.
    The input DC power supply is two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. DIP switch can restore factory defaults. When DC power supply or port has link failure, ALM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in AP coverage, railway transportation, smart city, safe city, new energy, smart grid, aerospace, intelligent manufacturing, military project and other industrial fields.

    Specification:


    Standard

    &

    Protocol


    IEEE 802.3 for 10Base-T

    IEEE 802.3u for 100Base-TX

    IEEE 802.3ab for 1000Base-T

    IEEE 802.3z for 1000Base-X

    IEEE 802.3x for Flow Control

    IEEE 802.1D for Spanning Tree Protocol

    IEEE 802.1w for Rapid Spanning Tree Protocol

    ITU-T G.8032 for ERPS

    IEEE 802.1Q for VLAN

    IEEE 802.1p for CoS

    IEEE 802.1X for 802.1X Authentication

    IEEE 802.1AB for LLDP

    IEEE 802.3ad for LACP

    IEEE 802.3af for PoE

    IEEE 802.3at for PoE+


    Management

    SNMP v1/v2c/v3 Centralized Management of Equipment, RMON, Port Mirroring, QoS, LLDP, DHCP Server, DHCP Client, File Management, Log Management, Port Statistics


    Security

    Classification of User Permissions, Radius server authentication, anti-attack control, ACL, 802.1X Authentication, Port Alarm, DC Power Supply Alarm, Storm Suppression, SSHD Configuration, Telnet Configuration, HTTPS Configuration


    Switch Function

    802.1Q Vlan, Static/Dynamic Port Aggregation, Bandwidth Management, Flow Control, Port Isolation



    Unicast / Multicast


    Static Multicast, GMRP, IGMP-Snooping

    Redundancy

    Protocol



    SW-Ring, STP/RSTP, ERPS


    Troubleshooting

    Ping, Traceroute, port loopback


    Time Management

    SNTP


    PoE

    The maximum power of POE port: 30W

    PoE power supply pin: V+, V+, V-, V- correspond to Pin 1, 2, 3, 6


    Interface

    Gigabit copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning

    Gigabit fiber port: 1000Base-FX, optional SC/ST/FC interface

    SFP slot: 1000Base-SFP, LC

    Console port: CLI command line management port (RS-232), RJ45

    Alarm port: 6-pin 5.08mm pitch terminal blocks(relay occupies 2 pins), support 1 relay alarm output, the current load capability is 1A@30VDC or 0.3A@125VAC


    LED Indicator

    Running Indicator, Alarm Indicator, Port Indicator, Power Supply Indicator, PoE Indicator


    Switch

    Property


    Transmission mode: store and forward

    MAC address: 8K

    Packet buffer size: 4Mbit

    Backplane bandwidth: 24G

    Switch time delay: <10μs


    Power

    Requirement


    This series of products provide 4 power supply modes.


    The PoE product has two optional power supply schemes:


    Scheme 1

    Power supply range: 24VDC PoE

    Connection mode: 6-pin 5.08mm pitch terminal blocks (power supply occupies 4 pins)

    Power supply quantity: dual power supply redundant backup

    Connection protection: anti-reverse connection

    Over-current protection: 12A


    Scheme 2

    Power supply input: 48VDC PoE

    Connection mode: 6-pin 5.08mm pitch terminal blocks (power supply occupies 4 pins)

    Power supply quantity: dual power supply redundant backup

    Connection protection: anti-reverse connection

    Over-current protection: 5A


    Non-PoE product has two optional power supply schemes:


    Scheme 3

    Power supply range: 12~48VDC

    Connection mode: 6-pin 5.08mm pitch terminal blocks (power supply occupies 4 pins)

    Power supply quantity: dual power supply redundant backup

    Connection protection: non-polarity

    Over-current protection: 3A


    Scheme 4

    Power supply input: 100~240VAC

    Connection mode: 6-pin 5.08mm pitch terminal blocks (power supply occupies 2 pins)

    Over-current protection: 5A


    Environmental

    Limit


    Operating temperature range: -40~75℃

    Storage temperature range: -40~85℃

    Relative humidity: 5%~95% (no condensation)


    Physical Characteristic

    Housing: IP40 protection, metal

    Installation: DIN-Rail or wall mounting

    Weight: ≤740g

    Dimension (W x H x D): 53mm×138mm×110mm


    Industrial

    Standard


    IEC 61000-4-2 (ESD), Level 3

    IEC 61000-4-4 (EFT), Level 3

    IEC 61000-4-5 (Surge), Level 3

    Shock: IEC 60068-2-27

    Free fall: IEC 60068-2-32

    Vibration: IEC 60068-2-6


    Certification

    CE, FCC, RoHS, UL61010


    Warranty

    5 years



    Dimension:


    Unit:mm


    DC power supply


    AC power supply


    Order Information:



    Available Models

    Gigabit Copper PortGigabit PoE PortGigabit Fiber PortGigabit SFP SlotPoE PowerPower Supply
    IES6312-8GP4GF-2P24-120W-84-120W

    24VDC POE

    dual power supply

    IES6312-8GP4GS-2P24-120W-8-4120W
    IES6312-8GP4GF-2P48-120W-84-120W

    48VDC POE

    dual power supply
    IES6312-8GP4GS-2P48-120W-8-4120W
    IES6312-8GP4GF-2P48-240W-84-240W

    48VDC POE

    dual power supply

    IES6312-8GP4GS-2P48-240W-8-4240W
    IES6312-8GT4GF-2P488-4--

    12~48VDC

    dual power supply

    IES6312-8GT4GS-2P488--4-
    IES6312-8GT4GF-P2208-4--100~240VAC
    IES6312-8GT4GS-P2208--4-
