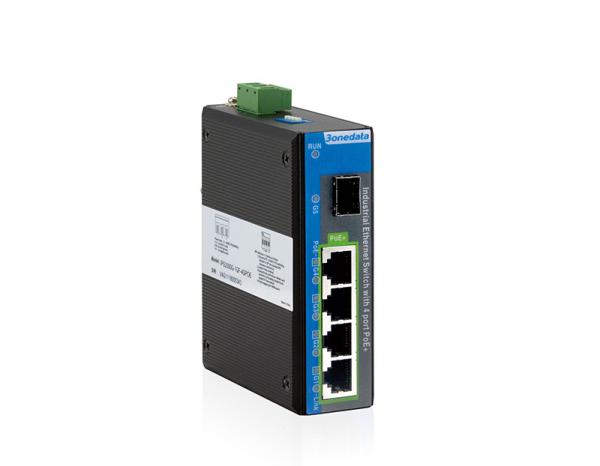

    Waterproof Industrial POE Switch -40~75 Centigrade Operating Temperature

    Industrial DIN-rail mounting layer 2 unmanaged 5-port full gigabit PoE switch

    Introduction

    IPS2000 series are 5-port full gigabit layer 2 unmanaged industrial PoE Ethernet switches and the PoE power supply is up to the protocol standard of IEEE 802.3af/at. This series have three products and provide gigabit copper ports, fiber ports, SFP slots and PoE copper ports. They adopt DIN-Rail mounting or wall mounting, which can meet the requirements of different scenes.


    The DIP switch could implement the switching of standard PoE power supply modes (IEEE 802.3af or IEEE 802.3at) as well as flow control, jumbo frames and RJ45 Forced 100M. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, railway transportation, smart city, safe city, new energy, aerospace, intelligent manufacturing, military project and other industrial fields.

    Specification

    Standard

    &

    Protocol

    IEEE 802.3 for 10Base-T

    IEEE 802.3u for 100Base-TX

    IEEE 802.3z for 1000Base-X

    IEEE 802.3ab for 1000Base-T

    IEEE 802.3x for Flow Control

    IEEE 802.3af for PoE

    IEEE 802.3at for PoE+

    PoE

    The maximum power consumption of PoE port: 30W

    The power supply pin of PoE: V-, V-, V+, V+ correspond to Pin 1, 2, 3, 6

    Interface

    Copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning

    Fiber port: 1000Base-FX, SC/ST/FC optional

    SFP slot: 100/1000Base-SFP

    LED Indicator

    Running Indicator, Port Indicator, PoE Indicator

    Switch Property

    Transmission mode: store and forward

    MAC address: 8K

    Packet buffer size: 1Mbit

    Backplane bandwidth: 14G

    Switch time delay: <10μs

    Power Requirement

    12~48VDC(PoE 48VDC), 3-pin 7.62mm pitch terminal blocks

    Support 3A over-current protection

    reverse polarity protection

    Environmental Limit

    Operating temperature range: -40~75℃

    Storage temperature range: -40~85℃

    Relative humidity: 5%~95% (no condensation)

    Physical

    Characteristic

    Housing: IP40 protection, metal

    Installation: DIN-Rail mounting or wall mounting

    Dimension (W x H x D): 35mm×110mm×95mm

    Weight: ≤400g

    Industrial Standard

    IEC 61000-4-2 (ESD), Level 3

    Air discharge: ±8kV

    Contact discharge: ±6kV


    IEC 61000-4-4 (EFT), Level 3


    IEC 61000-4-5 (Surge), Level 3


    Shock: IEC 60068-2-27

    Free fall: IEC 60068-2-32

    Vibration: IEC 60068-2-6

    Certification

    CE, FCC, RoHS

    Warranty

    5 years


    Dimension
    Unit:mm


    Ordering Information


    Available ModelsGigabit SFP SlotGigabit Fiber PortGigabit Copper PortGigabit POE PortPower Supply Range
    IPS2000G-1GT-4GPOE0014

    12~48VDC

    (PoE 48VDC)

    IPS2000G-1GS-4GPOE1004
    IPS2000G-1GF-4GPOE0104
