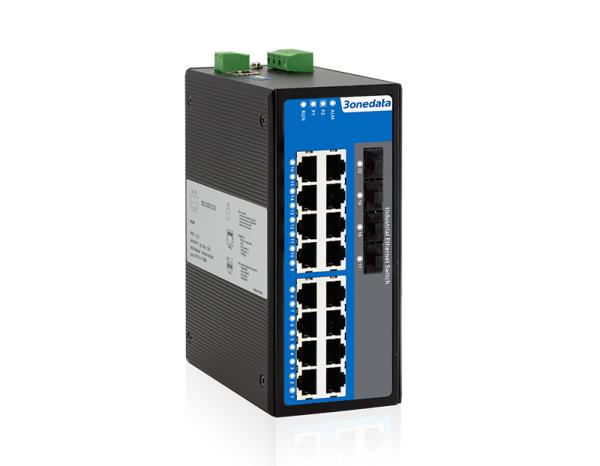

    Unmanaged 20 Port Network Switch , Full Gigabit Switch For Smart Grid

    Ask Lasest Price
    Brand Name : 3onedata
    Model Number : IES3020G
    Certification : CE, FCC, RoHS
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 3000 sets per month
    Delivery Time : 7 Working Days
    • Product Details
    • Company Profile

    Unmanaged 20 Port Network Switch , Full Gigabit Switch For Smart Grid

    20-port full gigabit unmanaged DIN-rail mounting industrial Ethernet switch

    Introduction

    IES3020G series are 16/20-port full Gigabit layer 2 unmanaged industrial Ethernet switches. This series provide Gigabit copper port and Gigabit SFP slot. They adopt DIN-Rail mounting to meet the requirements of different application scenes.


    Power supply input is two independent power supply circuits, which can ensure the device normal operation when one of the power supplies breaks down. Design of DIP switch can achieve the device rebooting. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, aerospace, intelligent manufacturing, military project and other industrial fields.


    Specification

    Standard

    &

    Protocol

    IEEE 802.3 for 10Base-T

    IEEE 802.3u for 100Base-TX

    IEEE 802.3ab for 1000Base-T

    IEEE 802.3z for 1000Base-X

    Interface

    Copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning

    SFP slot: 1000Base-SFP

    LED Indicator

    Running Indicator, Port Indicator, Power Supply Indicator

    Switch

    Property

    Transmission mode: store and forward

    MAC address: 16K

    Packet buffer size: 12Mbit

    Backplane bandwidth: 56G

    Switch time delay: <10μs

    Power

    Requirement

    12~48VDC, 4-pin 7.62mm pitch terminal blocks

    dual power supply redundancy, reverse polarity protection, nonpolarity

    Environmental

    Limit

    Operating temperature range: -40~75℃

    Storage temperature range: -40~85℃

    Relative humidity: 5%~95%(no condensation)

    Physical

    Characteristic

    Housing: IP40 protection, metal

    Installation: DIN-Rail mounting

    Dimension (W x H x D): 70mm×160mm×130mm

    Weight: ≤1.08kg

    Industrial

    Standard

    IEC 61000-4-2 (ESD) ,Level 3

    IEC 61000-4-4 (EFT), Level 3

    IEC 61000-4-5 (Surge), Level 3

    Shock: IEC 60068-2-27

    Free fall: IEC 60068-2-32

    Vibration: IEC 60068-2-6

    Certification

    CE, FCC, RoHS

    Warranty

    5 years


    Dimension
    Unit:mm


    Ordering Information


    Available ModelsGigabit SFP SlotGigabit Copper PortPower Supply Range
    IES3020G-4GS416

    12~48VDC

    dual power supply

    IES3020G-16GT016
